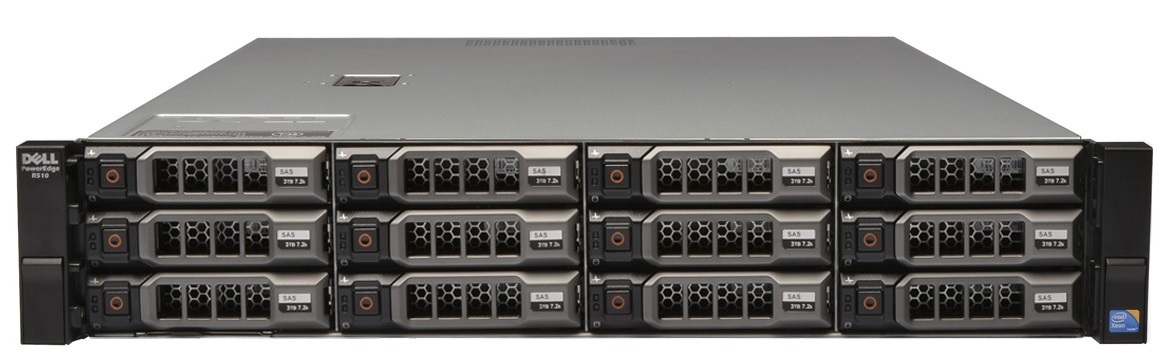

Dell PowerEdge R510

General Information

Form Factor	2U
Chipset	Intel 5520
CPU Socket	2x LGA 1366
CPU Compatability	Xeon 5500 Xeon 5600
RAM, Maximum Total Capacity	128 GB
RAM, Maximum DIMM Capacity	16 GB
RAM, Speed	DDR3 800 (PC3 6400) DDR3 1066 (PC3 8500) DDR3 1333 (PC3 10600)
RAM, Socket	8 (4/CPU)
RAM, Channels	2
Storage	4x 3.5" SAS/SATA 8x 3.5" SAS/SATA 12x 3.5" SAS/SATA 2x 2.5" SAS/SATA

Parts & Part Numbers

Part	Dell Part #
Chassis, 4B	FV2VM
Chassis, 8B	RF0CM
Chassis, 12B	M575V

System Boards

Part	Dell Part #
Motherboard	DPRKF
Backplane	Y776M / DGWM2
Backplane SAS Controller	6V580
Power Distribution Board	X847M
PCIe Riser Frame	4HJHF
PCIe Riser	H949M

Power Supplies / Batteries

Part	Dell Part #
480w	H410J
750w	4T22V
1100W	3MJJP / 9PG9X / 1Y45R / TCVRR

Cables

Part	Dell Part #
Control Panel	N269G
H200/H700 SAS A	Y674P
H200/H700 SAS B	NJXNN
SAS Activity	T871M
Backplane, 8-pin	J9KF9
Backplane, 10-pin	N374P
Backplane, 50-pin	K430P
HDD 12 SAS	N373P
HDD 13 SAS	M300P

RAID Controllers

Part	Dell Part #
SAS 5/E 256MB	DM479 / GP297 / UT568 / XM768
SAS 6/iR	YK838 / JW063 / CR679
PERC 6/i	H726F / DX481 / T954J / WY335
PERC S300	Y159P
PERC H200	3J8FW
PERC H700 512MB	CNXVV / 1THG8 / H2R6M / K883J / W56W0 / R374M / XXFVX
PREC H700 1GB	HCR2Y
PERC H800 512MB	71N7N / 87V49 / D90PG / N743J / NCHRW / R1HPD
PERC H800 1GB	5KYFR / VVGYD

Accessories

Part	Dell Part #
Chassis Locking Top Cover	MF097 / JCRV1
Heatsink	6DMRF
System Fan	90C8M
iDRAC 6 Express	JPMJ3 / DW592 / K9J8N / Y383M
iDRAC 6 Enterprise	J675T / K869T / MU531 / R168K
3.5" Drive Tray/Caddy	F238F
PCI Slotted Blank Cover	DD463
CPU Shroud	27DFW

Links

• Dell Support

Documents

• R510 Specifications (October 2012)
• R510 Technical Guide (May 2010)
• R510 Owners Manual (November 2009)

---
