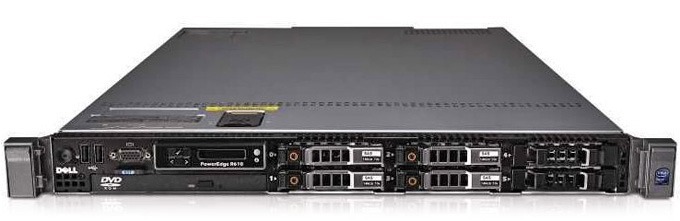

Dell PowerEdge R610
|
|
| Form Factor |
1U |
| Chipset |
Intel 5520 |
| CPU Socket |
2x LGA 1366 |
| CPU Compatability |
Xeon 5500
Xeon 5600 |
| RAM, Maximum Total Capacity |
384 GB |
| RAM, Maximum DIMM Capacity |
16 GB |
| RAM, Speed |
DDR3 800 (PC3 6400)
DDR3 1066 (PC3 8500)
DDR3 1333 (PC3 10600) |
| RAM, Socket |
12 (6/CPU) |
| RAM, Channels |
2 |
| Storage |
6x 2.5" SAS/SATA |
Parts & Part Numbers
| Part |
Dell Part # |
| Chassis |
YPDP1 |
System Boards
| Part |
Dell Part # |
| Motherboard (Gen I) |
3YWXK / 86HF8 / J352H / XDN97 |
| Motherboard (Gen II) |
F0XJ6 / TTXFN |
| 2.5" SAS/SATA Backplane |
D109N / KHP6H / WR7PP |
| Center PCIe x8 Riser |
4H3R8 / C480N |
| Left PCIe x8 Riser |
6KMHT / X387M |
Power Supplies / Batteries
| Part |
Dell Part # |
| 717w Power Supply |
FJVYV / MP126 / RCXD0 / RN442 |
| 502w Power Supply |
8V22F / C472K / DXWMN / J38MN / KY091 / MU791 / XTGFW |
| PERC Battery |
NU209 / U8735 |
Cables
| Part |
Dell Part # |
| Backplane Power |
XT567 |
| PERC 6/i Mini-SAS A |
NW348 / RF5PF |
| PERC 6/i Mini-SAS B |
FTTNX / JM257 |
| H200/H700 SAS A/B |
M246M / Y100N |
| DVD Drive Split SATA/Power |
RN657 |
| PERC 6i/H700 Battery |
RY631 |
RAID Controllers
| Part |
Dell Part # |
| PREC H700 1GB |
HCR2Y |
| PERC H700 512MB |
CNXVV / 1THG8 / H2R6M / K883J / W56W0 / R374M / XXFVX |
| PERC H800 1GB |
5KYFR / VVGYD |
| PERC H800 512MB |
71N7N / 87V49 / D90PG / N743J / NCHRW / R1HPD |
| PERC 6/i |
H726F / DX481 / T954J / WY335 |
| PERC 6/iR |
YK838 / JW063 / CR679 |
| PERC 5/E 256MB |
DM479 / GP297 / UT568 / XM768 |
Accessories
| Part |
Dell Part # |
| Heatsink (< 130w) |
TR995 |
| Heatsink (>= 130w) |
G1TJH |
| RAM Blank/Filler |
52P2C |
| DVD-ROM |
MKT6V / FY190 / 4C94P / K145G / 46V56 / 7RDMR / 83M5C / FN679 / KVXM6 / P875G |
| DVD-RW |
0NT81 / 4V7F1 / 5WWRM / 95M6Y / 96R30 / HCHD9 / MC5V9 / U951M / 27NC0 |
| iDRAC 6 Express |
JPMJ3 / DW592 / K9J8N / Y383M |
| iDRAC 6 Enterprise |
J675T / K869T / MU531 / R168K |
| System Fan (Sunon 40x56mm 15k) |
KVVP3 |
| System Fan Assembly |
WP838 |
| 2.5" Drive Tray/Caddy |
G176J |
| 2.5" Drive Blank/Filler |
TW13J |
| ReadyRails, Sliding |
P223J |
| Cable Management Arm (CMA) |
NN006 |
| Bezel |
TY293 / FU741 |
